Engidraft -Engineering Drawing

Features Engidraft -Engineering Drawing

Engidraft is an engineering drawing application that generates different kinds of standard and detailed engineering drawings for various mechanical and structural engineering parts now commonly used in industry.

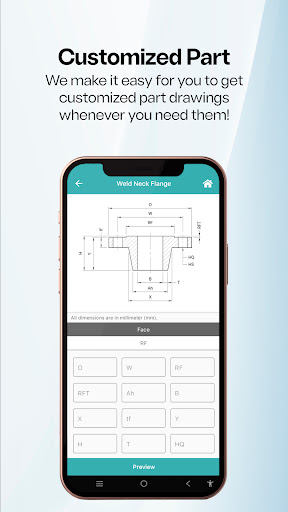

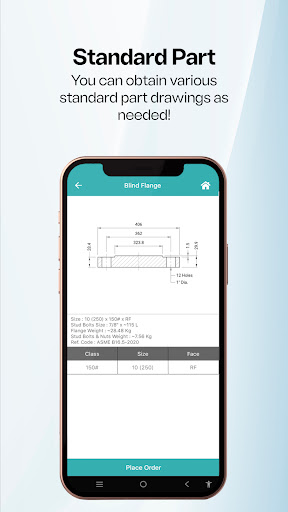

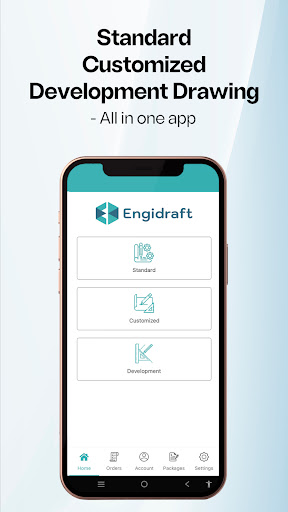

The application is designed to;→ Generate neat, tidy and reliable drawings with one-time data input by the user→ Generate drawings with uniform formatting for a pleasant appearance and presentation→ Avoid corrections in drawings arising out of human error→ To save the effort and time of engineers and draughtsman→ Increase productivity and amount of deliverablesIn addition, there are numerous other comprehensive benefits that are not be listed here.The following types of drawings are provided by Engidraft;STANDARD PARTS• Pipes• Flanges→ Weld Neck Flange→ Blind Flange• Fittings→ 90 Elbow (SR-BW)→ 90 Elbow (LR-BW)→ Equal Tee (BW)→ Reducing Outlet Tee (BW)CUSTOMIZED PARTS• Pipe Fittings→ PipeDEVELOPMENT DRAWINGS• Shell or PipeAnd, many other engineering part drawings are available in app which are not mentioned here.
